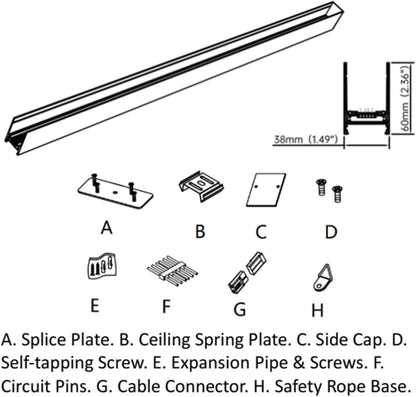

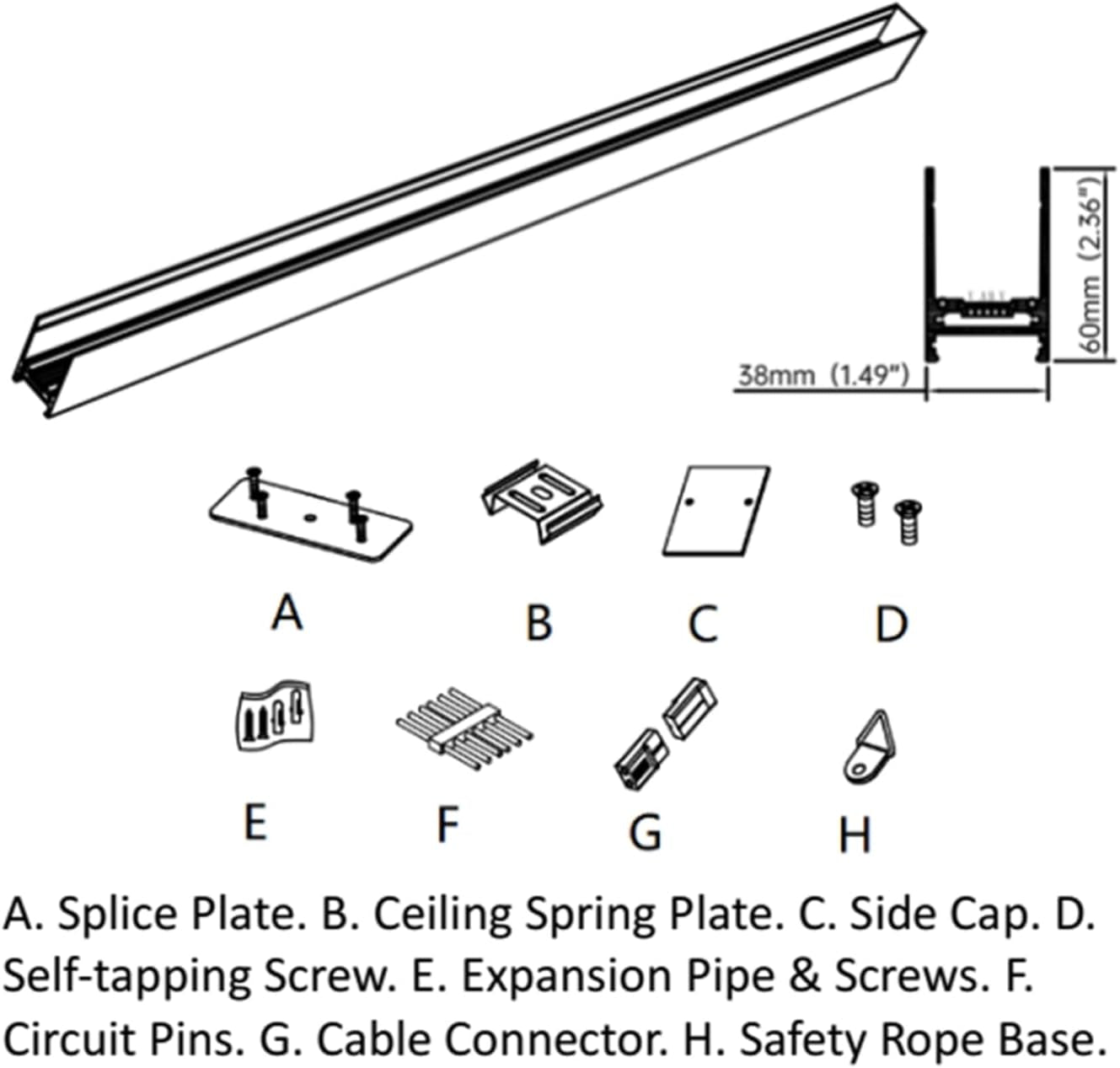

SCON XTB106-C-B Updated 4-Wire Ceiling Surface Mounted Magnetic Track Lighting, Aluminum Linear Rail Section System, Input Power Track for LED Light Lamp Head (50Cm/19.7Inch/No Driver/Black)

SCON XTB106-C-B Updated 4-Wire Ceiling Surface Mounted Magnetic Track Lighting, Aluminum Linear Rail Section System, Input Power Track for LED Light Lamp Head (50Cm/19.7Inch/No Driver/Black)

$99.99 USD
$0.00 USD $99.99 USD
Sale Sold out
Shipping calculated at checkout.
Color
Size
  • Save more by entering "SCON1234", 7 pcs (enjoy 7%), 15 pcs (enjoy 15%), 30 pcs (enjoy 30%).The 2-wire track and 4-wire track are compatible: They can be mixed and connected together for use if you don't need DALI multi-CCT dimming.

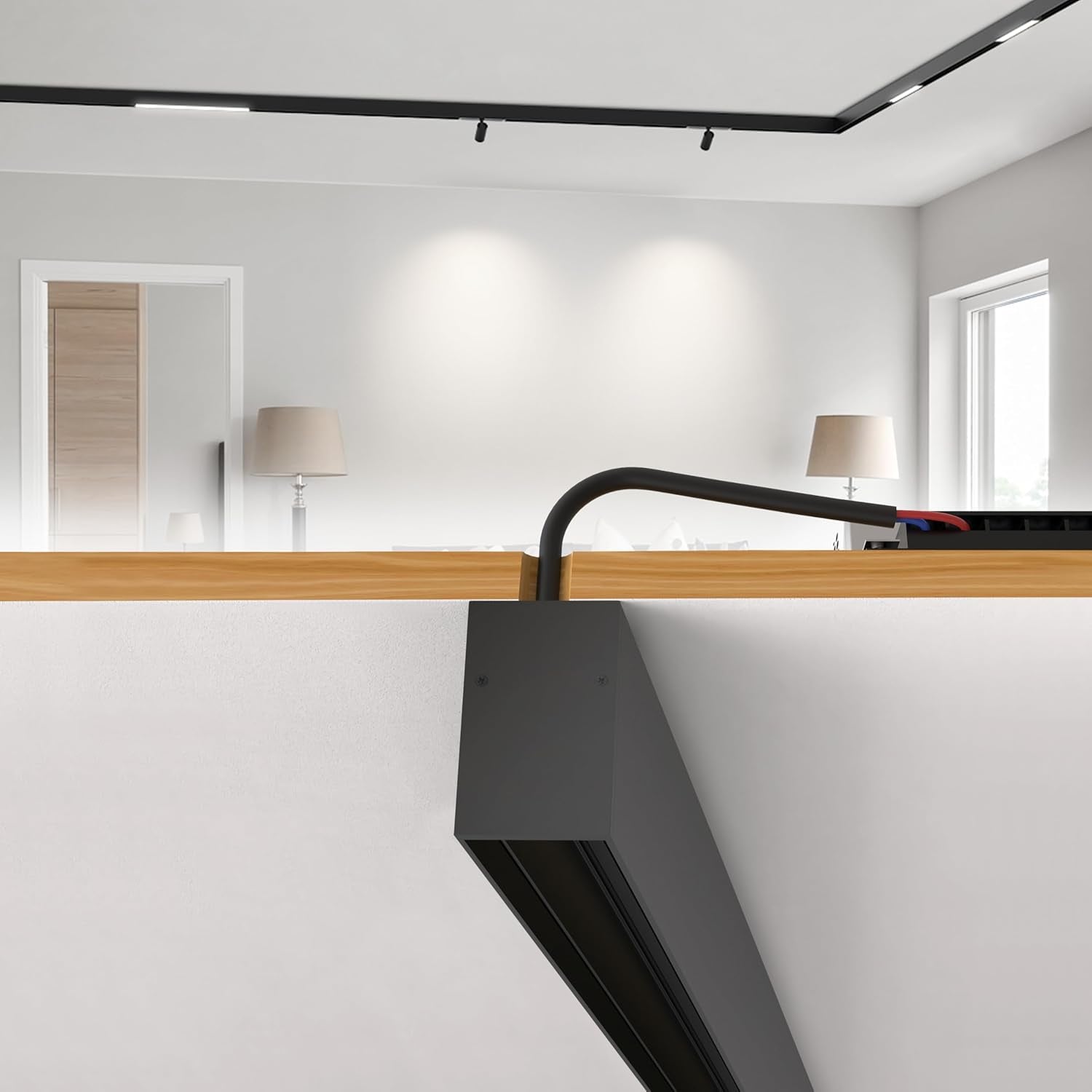

  • The LED driver cannot be hidden inside the track. They can be put in after making holes to the ceiling and taking care of fire protection.
  • Built-in 4 more efficient gold plating conductive wires, compatible with several dimming systems.

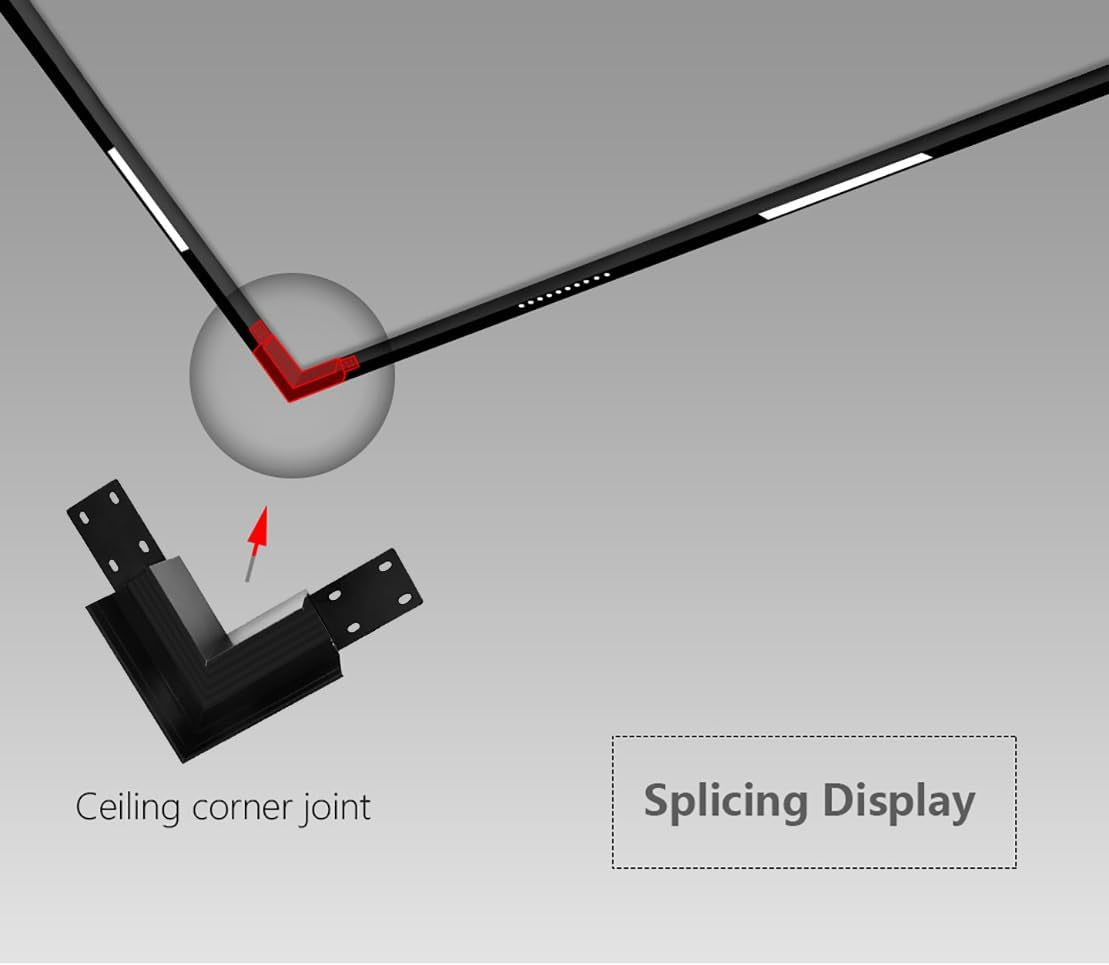

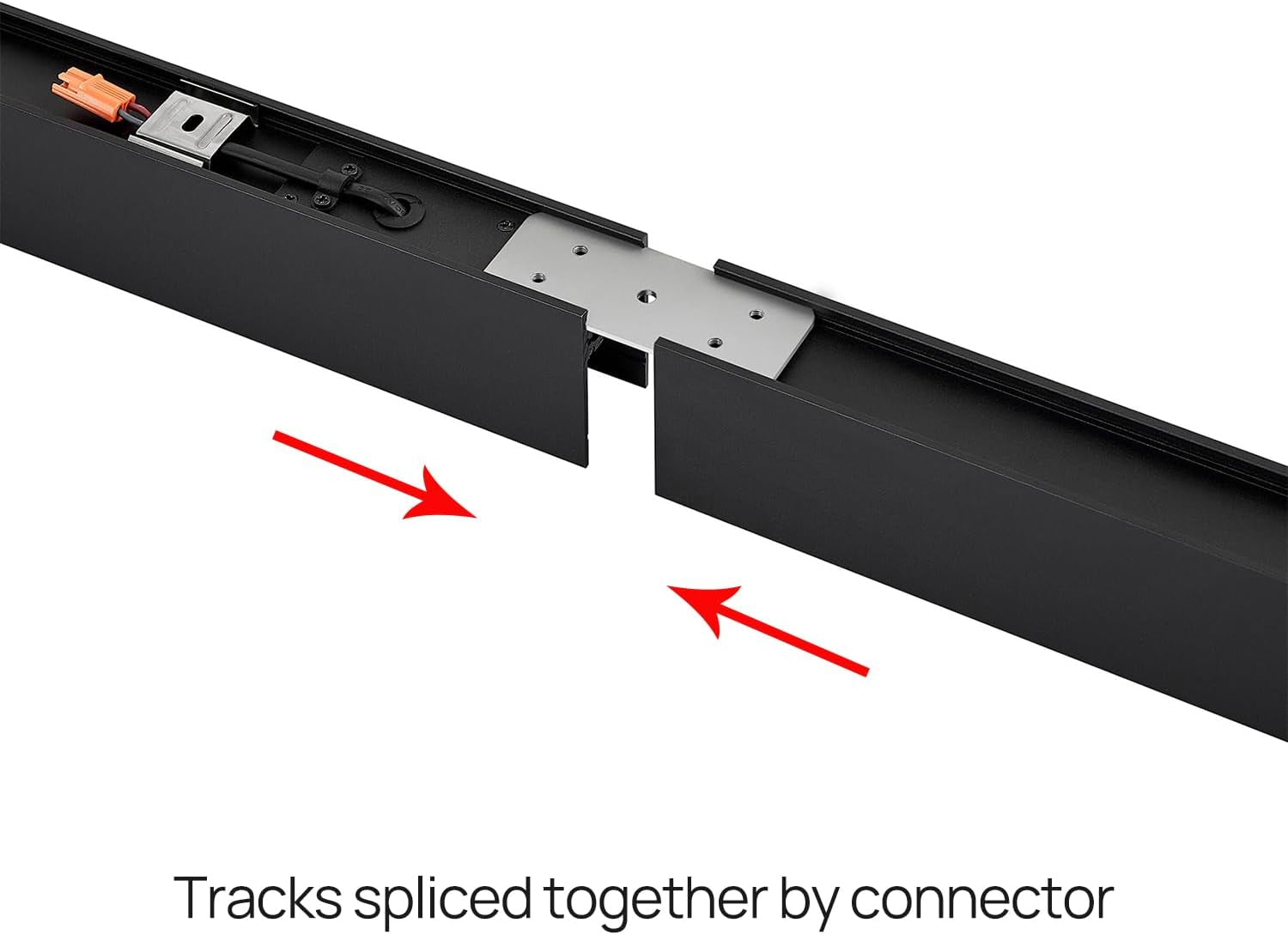

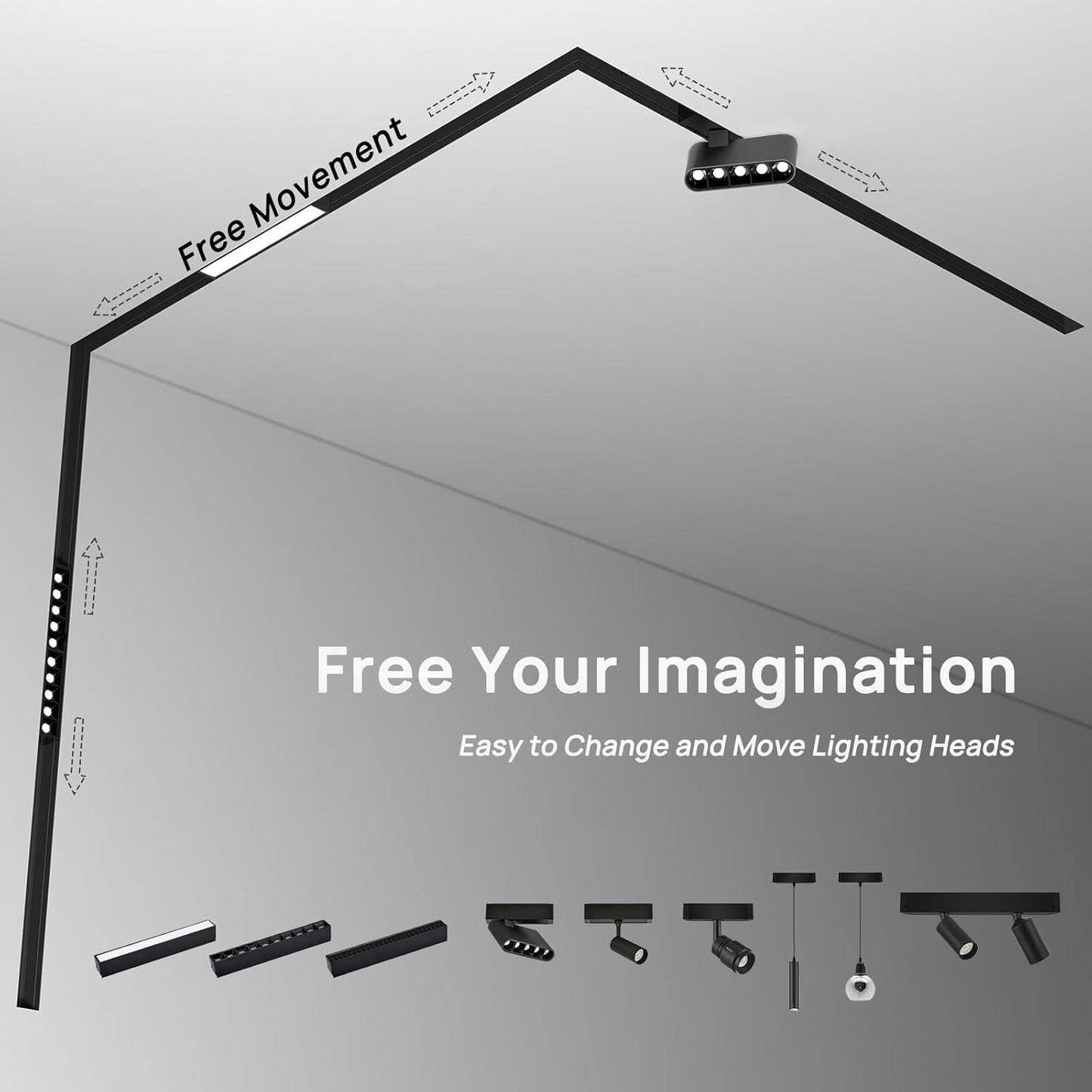

  • Can be connected by several tracks and power supplied by an external driver.

Product Description

Magnetic Track Lighting System - Black

Wiring Diagrams of Track A (Built-in Driver)

No Dimming

  • Track A : 110V AC input & 24V DC output
  1. (1)Track A + (2)24V Support DIM Fixture + (3)Switch.
  2. (1)Track A + (2)24V NO DIM Fixture + (3)Switch.

TRIAC/ELV

  • Track A : 110V AC input & 24V DC output
  1. Mistaking an TRIAC switch for a 0-10V switch and wiring it in this way can lead to noisy dimming, etc. Switches that can regulate incandescent lamps are TRIAC switches.
  2. (1)Track A + (2)24V Support DIM Fixture + (3)TRIAC Switch.

0-10V/1-10V

  • Track A : 110V AC input & 24V DC output
  1. (1)Track A + (2)24V Support DIM Fixture + (3)0-10V Switch.

Wiring Diagrams of Track B (No Built-in Driver)

No Dimming

  • Track B : 24V/48V DC input / output
  1. (1)Track B + (2)24V SUP DIM Fixture + (3)24V Driver A + Switch.
  2. (1)Track B + (2)48V SUP DIM Fixture + (3)48V Driver A + Switch.
  3. (1)Track B + (2)24V NO DIM Fixture + (3)24V Driver A + Switch.

TRIAC/ELV

  • Track B : 24V/48V DC input / output
  1. Mistaking an TRIAC switch for a 0-10V switch and wiring it in this way can lead to noisy dimming, etc. Switches that can regulate incandescent lamps are TRIAC switches.
  2. (1)Track B + (2)24V Driver B + (3)24V SUP DIM Fixture + (4)TRIAC Switch.
  3. (1)Track B + (2)48V Driver B + (3)48V SUP DIM Fixture + (4)TRIAC Switch.

0-10V/1-10V

  • Track B : 24V/48V DC input / output
  1. (1)Track B + (2)24V SUP DIM Fixture + (3)24V Driver B + (4)0-10V Switch.
  2. (1)Track B + (2)48V SUP DIM Fixture + (3)48V Driver B + (4)0-10V Switch.

Tuya Wireless Multi-CCT Dim

  • Track B : 24V/48V DC input / output
  1. (1)Track B + (2)48V Wireless DIM Fixture + (3)Tuya Zigbee Gateway + (4)Tuya App + (5) WIFI.
  2. Track A doesn't support TUYA wireless Dimming.
  3. This system needs 48V tuya support dimming fixture.

Certification-UL 1574 & FCC

Choosing Correct Dimming Method

NOTICE

  • Due to the complexity of the dimming system, please read installation instructions carefully in Store Page, install & use it with the support of a PROFESSIONAL ELECTRICIAN.
  • Note that according to the product page & Store page to choose your system's components correctly.
  • SCON doesn't directly supply dimming switch, Tuya Zigbee Gateway , but it's compatible with most brand.
  1. TRIAC/ELV: Large market share, tranditional and high compatibility and easy installation. However, it is simple in function and the LED driver power supply may generate audio noise, and the LED lights may flicker.
  2. 0-10V
    1. 10 V is the brightest, and 0 V is turned off. Almost all products from OKT Lighting support 0-10V dimming. 1-10V does not have a switch function, and could not adjust the fixtures to the lowest closing effect.
  3. DALI
    1. Advantages
      1. DALI (Digital Addressable Lighting Interface) is an internationally-recognized lighting control communication protocol.
      2. Digital dimming, dimming accurate, stable and smooth. DALI control is more flexible and has strong anti-jamming ability.
      3. DALI can communicate with each other in both directions, and can feedback the lamp status to the system control interface. So it supports the dimming of a single lamp or a group of areas.
    2. Two types of DALI: 1) DALI Mono-CCT. 2) DALI Multi-CCT (2700K-5700K). About the two, the wiring principle is the same but the components are different (please read the instructions in detail).
  4. Tuya Zigbee Wireless Dim. Switching and dimming control of each fixture individually can be realized through Tuya Smart APP. Group dimming and switching of lamps can be realized, also compatible with Google and Alexa assistant. Operation is a bit complicated and requires patience.
